Description
Yokogawa No. EJX910A-FMS4G-912DJ 2B/KS26/D4/X2/A/M11/T13/N4/LC1E

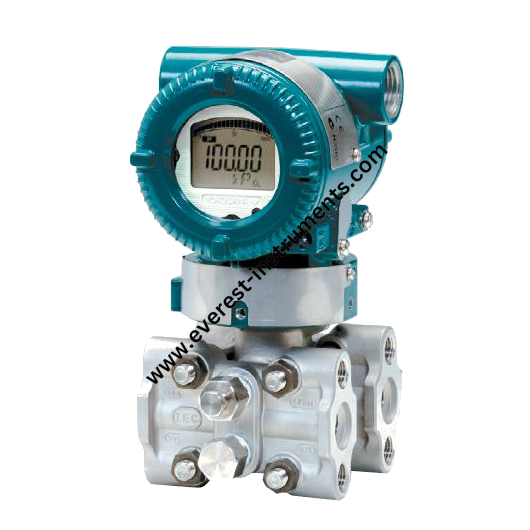

Yokogawa EJX910A Multivariable Pressure Transmitter
The high performance EJX910A multivariabletransmitter features multi-sensing technology with a single-crystal silicon resonant sensor that outputs the measured differential pressure, static pressure and process temperature, which covers multiple protocols: HART, FOUNDATION fieldbus and RS485 Modbus. Additionally the HART protocol and FOUNDATION fieldbus protocol types are suitable to measure dynamically calculated and fully compensated mass flow for liquid, gas, or steam. 4 to 20 mA DC signal output is available in HART protocol type. FDT/DTM* standard conforming software is available for transmitter configuration. FSA120 (FlowNavigator®) is used for flow configuration of the HART protocol and. FOUNDATION fieldbus protocol types.
FDT (Field Device Tool): Defines the system environment in which the DTM runs.
DTM (Device Type Manager): The application which defines the graphical user interface (GUI) specific to the device
The Yokogawa EJX910A multivariable pressure transmitter is part of the Yokogawa DPharp transmitter series. It has multiple detection technology with a single crystal silicon resonant sensor that generates the measured differential pressure, static pressure and process temperature, covering multiple protocols: HART, FOUNDATION fieldbus and RS485 Modbus.
Mass flow version Multi-sensor version Accuracy of ± 1.0% of mass flow Totally compensated mass flow Mass flow totalizer with accuracy of ± 1.0% Pulse / contact output TUV SIL 2/3 certification Differential pressure accuracy of ± 0.04% Static pressure accuracy ± 0.1% External temperature accuracy of ± 0.9 ° F TUV SIL 2/3 certification.
